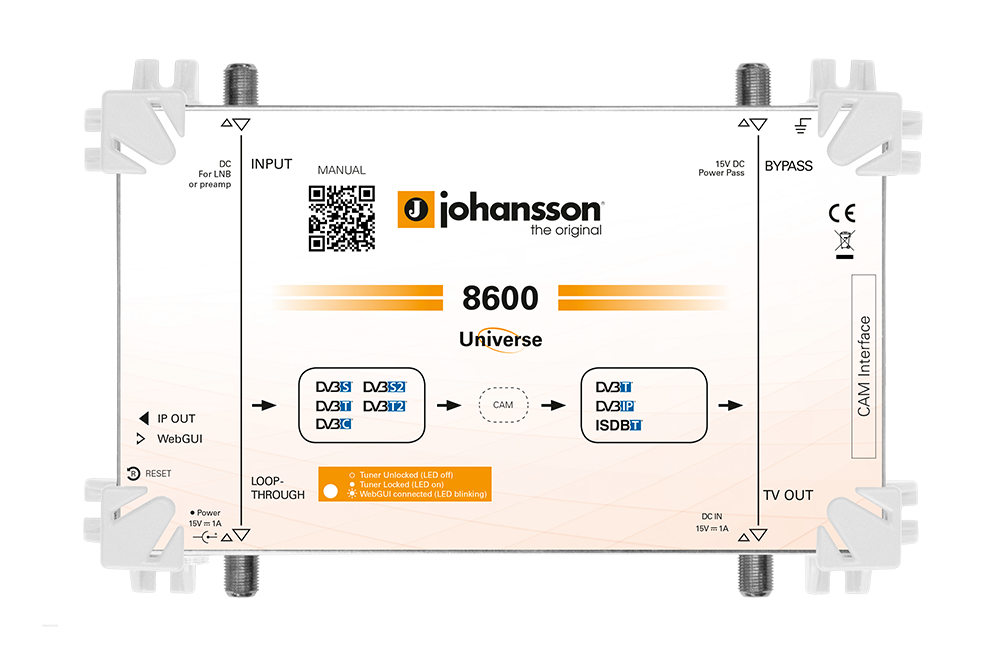

Ref. 8600 UNIVERSE (EOL)
8600 UNIVERSE (EOL)
Universal Compact headend: 1 input (DVB-S2, DVB-T2 or DVB-C) / 1 IP out and 1 RF out (DVB-T or ISDB-T) (END-OF-LIFE!)
Receives 1 transponder from any DVB source (satellite, terrestrial or cable) Decrypts the PayTV channels, when a professional CAM is inserted Puts the demodulated transponder on your private coaxial and IP network Can work standalone to insert channels in your existing network More products can be combined to a make a complete headend: Cascadable inputs and outputs Remote powering capabilities Compatible with SD and HD, with MPEG2 and MPEG4 Perfect picture quality thanks to a MER, comparable to premium headend equipment Plug&Play thanks to a built-in WebGUI
| 8600 | ||
|---|---|---|
| INPUT | ||
| Number of inputs | - | 1 with passive loop-through (-2dB) |
| Tuner | - | 1 |
| Frequency range | MHz | 42-2150 |
| Input level | dBm | -65 to -20 |
| Standard | - | DVB-S/S2 DVB-T/T2 DVB-C |
| DC remote power for LNB or LNA | V mA |
0/13/18/22kHz/DiSEqC, EN50494, EN50607 350 |
| RF OUTPUT | ||
| Number of outputs | - | 1 RF with passive loop-through (-2 dB) |
| Multiplex | - | 1 |
| Frequency range | MHz | 174-862 |
| Output level | dBm | -45 to -20 (adjustable) |
| Standard | - | DVB-T ISDB-T |
| Modulation error rate (MER) | dB | 40 |
| ETHERNET OUTPUT | ||
| Number of outputs | - | 1 Gb Ethernet |
| Standard | - | IEEE 802.3ab 10/100/1000 Base-T |
| Protocol | - | Multicast IP/UDP |
| GENERAL | ||
| CI slot | - | 1 |
| Input voltage | VDC | 12-20 |
| Power consumption | W | 7 (without CAM and without remote power) |
| DC jack | mm | Ø 2,1 |
| Powering remote units | - | Yes, 1 unit can power other units |
| Operating temperature | °C | 0 to +50 |
| Dimensions | mm | 222x142x50 |
| Weight | Kg | 1,1 |
| Accessories | - | 15V power adapter, 1 Ethernet cable |
| EAN | - | 5404041101750 |
