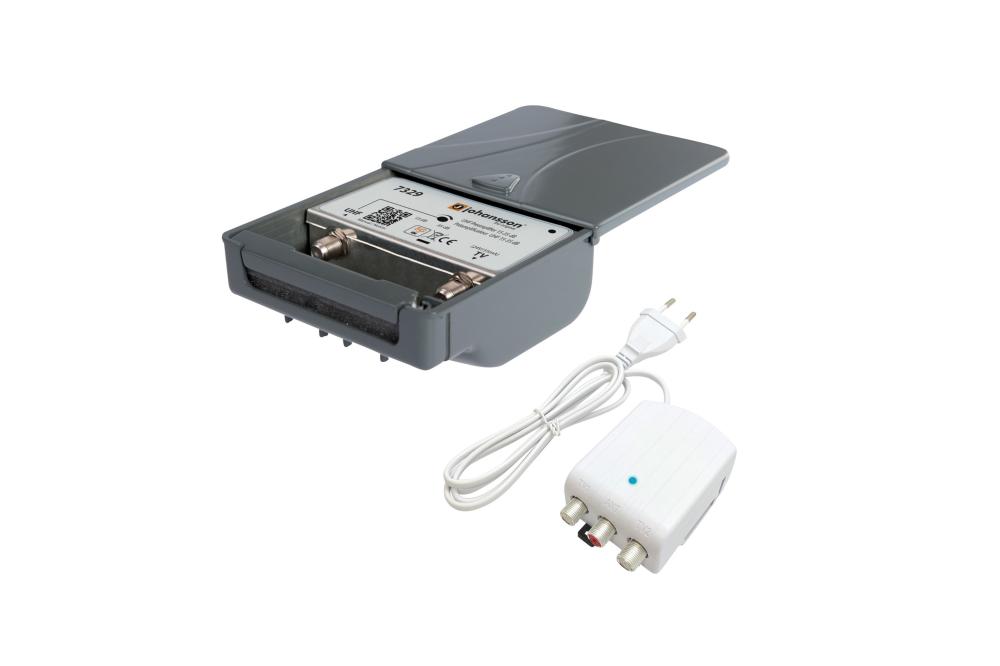

Ref. KIT7329 UHF Preamplifier (5G) (Improved quality) + Power Supply


KIT7329 UHF Preamplifier (5G) (Improved quality) + Power Supply

UHF Preamplifier (5G): 32dB 24V


7329 UHF Preamplifier (5G):


  • 1 input/1 output
  • 5G rejection
  • Low-noise
  • 15-32 dB adjustable gain
  • Power indication LED
  • 24 VDC operating voltage
  • Improved quality

Power Supply:

  • High-efficiency power supply
  • 24V stabilized
  • Short-circuit protection
  • Power LED indicator
  • Wall or DIN-rail mountable

Specifications

7329
Frequency range MHz 470-694 (Ch. 21-48)
Gain dB 15 - 32
Noise figure dB 2,5
Input level  dBµV 82
Output level  dBµV 108
Power supply  VDC 24
Consumption mA 65
Dimensions mm 120 x 115 x 50
EAN - 5404041102733
