Ref. 7329 UHF Preamplifier (5G) (Improved quality)

Go to products

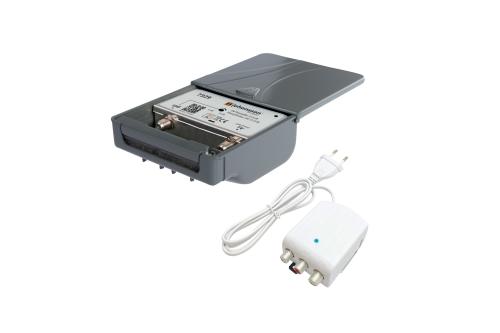

7329 UHF Preamplifier (5G) (Improved quality)

UHF Preamplifier (5G): 32dB 24V


  • 1 input/1 output
  • 5G rejection
  • Low-noise
  • 15-32 dB adjustable gain
  • Power indication LED
  • 24 VDC operating voltage
  • Improved quality

Back: Ref. 7327L2 Next: Ref. 7332

Specifications

7329
Frequency range MHz 470-694 (Ch. 21-48)
Gain dB 15 - 32
Noise figure dB 2,5
Input level  dBµV 82
Output level  dBµV 108
Power supply  VDC  24
Consumption mA  65
Dimensions mm 120 x 115 x 50
EAN - 5404041101392
