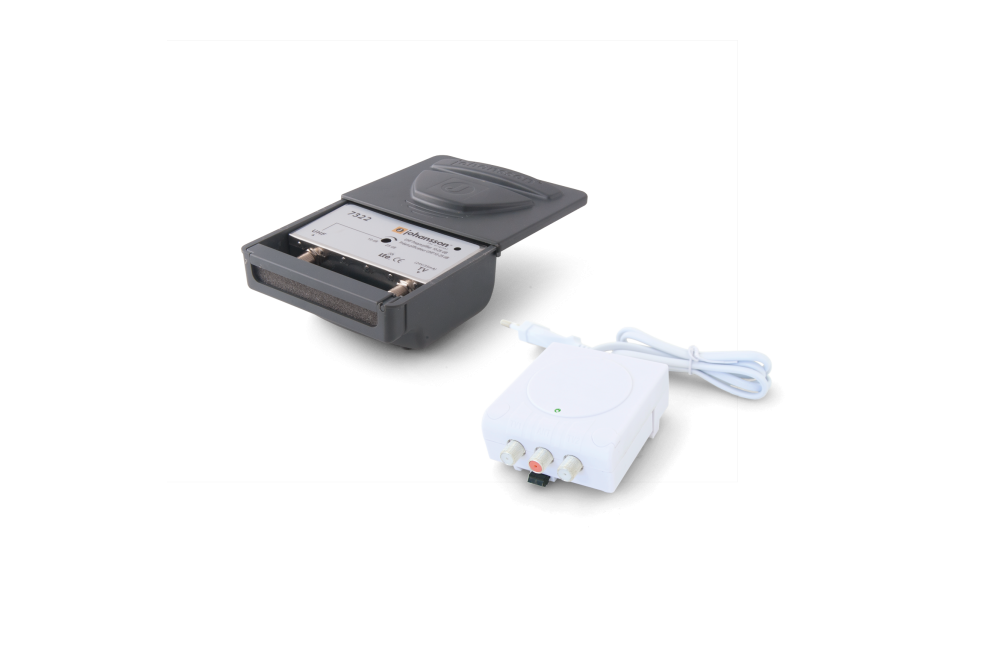

Ref. KIT7322L2 DTT 5G preamplifier + Power Supply
KIT7322L2 DTT 5G preamplifier + Power Supply
UHF Ch21-48(5G) : 10-25dB 24V
Low noise 5G preamplifier 25 dB adjustable gain High selectivity UHF filter with built-in GSM trap Compact housing
Power led indicator
Wall / mast mounting with strap

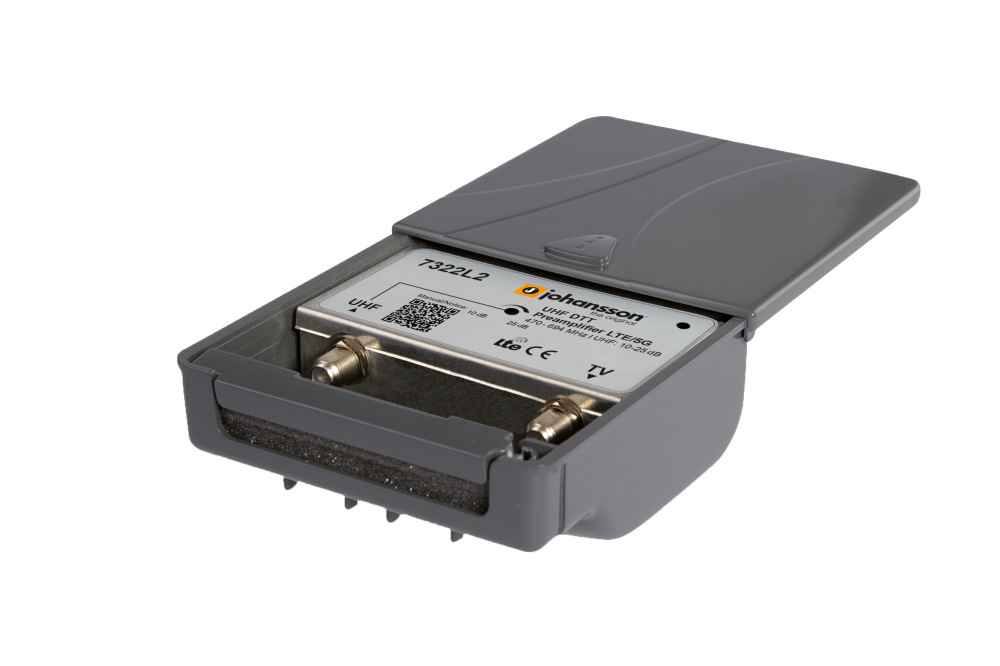

7322L2 Preamplifier:
- 1 input / 1 output
- 5G rejection
- Ultra low-noise
- Adjustable gain
- High selectivity
- Built-in GSM trap
- Power LED indicator
- Mast or wall mounting
Power Supply:
High-efficiency power supply
24V stabilized
Short-circuit protection
Power LED indicator
Wall or DIN-rail mountable
| KIT7322L2 | ||
|---|---|---|
| Frequency range | MHz | 470 - 694 (ch. 21-48) |
| Gain | dB | 10-25 adj. |
| Noise figure | dB | 2,0 |
| Output level | dBµV | 105 |
| Power supply | VDC | 24 |
| Consumption | mA | 50 |
| Dimensions | mm | 105 x 105 x 37 |
| EAN | - | 5404041102726 |
