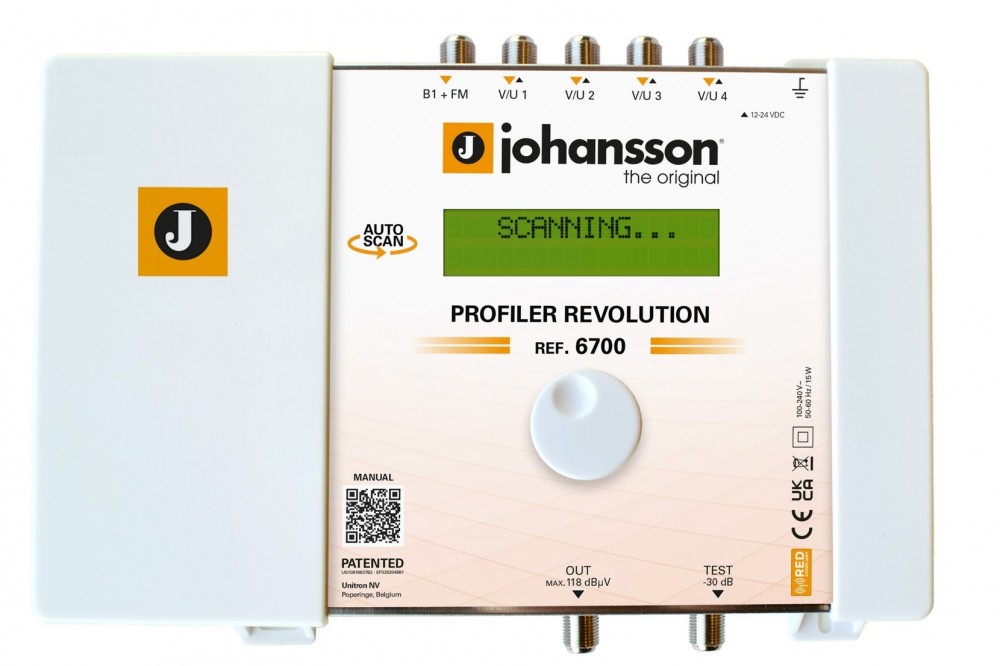

Ref. 6700 Profiler Revolution

6700 Profiler Revolution

Programmable terrestrial filter amplifier: 5 inputs: FM / 4 x VHF-UHF / > 50 Channels / AGC / 12-24 V remote power


 The new Johansson Profiler Revolution has no equivalent on the market due to its revolutionary technology:
  • Read-out of input level strength: no need for field strength meter
  • Can process more than 50 channels (32 filters)
  • Can convert a wide selection of channels Sharpest filters on the market (50 dB on adjacent channels)
  • Real-time AGC on all individual filters
  • Flex matrix: complete flexibility in assigning filters from any input
  • Made in Europe, for worldwide application
  • The Profiler Revolution facilitates straightforward configuration and is the most cost-efficient Profiler on the market
  • RED compliant (selectivity classification 0 – 1 – 2 – 3 – 4) .

Here's what the Many users of the Profiler Revolution say: it truly is an innovative product with 6 big advantages:

  • The most cost-efficient channel convertor solution on the market, with great flexibility to assign any VHF/UHF input to any VHF/UHF output
  • Very easy and fast installation , without the need for a field strength meter
  • Extremely sharp filters , 50 dB on adjacent channels and integrated 4G/5G/LTE filters.
  • The Profiler Revolution can filter and amplify very weak signals. This is something that our test users could not do in the past with other equipment.
  • Perfect headend for your fibre installation to equalise and optimise the signals
  • Excellent quality of the output signal , the Profiler Revolution optimises the incoming digital terrestrial signal to assure supreme video quality on the end-users' TV-screens

Make installation even faster using the online configurator.

Specifications

6700*(SW1.6.0)
Inputs - 4 VHF/UHF + 1FM
Outputs - 1 main (FM-VHF-UHF) + 1 test port (-30dB)
Frequency range MHz
MHz
MHz
FM: 88 - 108
VHF:174 - 240
UHF: 470 - 862
LTE protection MHz Automatic selection: 694, 790 or OFF
Input level dBµV
dBµV
dBµV
FM: 37 - 77
VHF: 40** - 109
UHF: 40** - 109
FM output power (60dB/IM3) dBµV 113
VHF/UHF output power (60dB/IM3) dBµV 120
VHF/UHF output power (35dB/IM3) dBµV 131
VHF/UHF output power with 1 MUX dBµV 118
VHF/UHF output power with 6 MUX dBµV 113
VHF/UHF output power with 15 MUX dBµV 109
VHF/UHF output power with 32 MUX dBµV 106
Conversion - Yes (from any VHF-UHF channel to any VHF-UHF channel)
Gain dB
dB
dB
FM: 35
VHF: > 75
UHF: > 75
Gain adjustment dB
dB
FM: 20
VHF/UHF: Channel AGC
General attenuator dB 20
VHF/DAB attenuator dB 15
Slope adjustment dB 15
Selectivity dB/1MHz 50
Output MER dB
dB
VHF: 35
UHF: 35
ESD protection - All inputs
Remote voltage for preamp
Remote current
V
mA
12 or 24
100 (total for the 4 inputs)
SD port - Yes (for copy configuration)
Operating temperature °C -5 to +50
Power Supply
Power Consumption
V
W
100 - 240
15
Dimensions mm 217 x 165 x 59
Weight kg 0,8
  1. * Patented Technology | ** For 64QAM with code rate 3/4
