Ref. 9725 SFU dCSS Switch

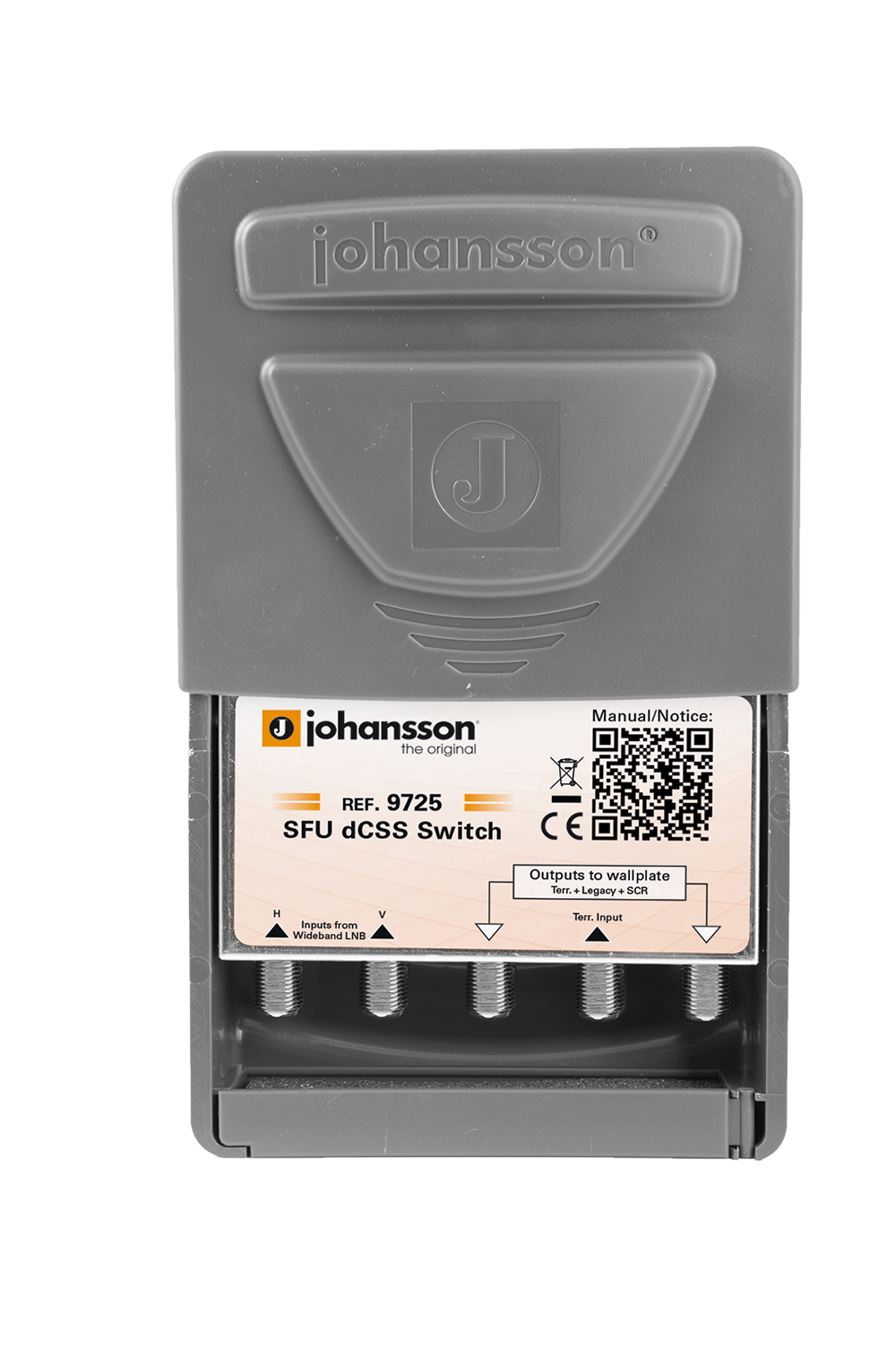

9725 SFU dCSS Switch

2 Satellite inputs, SKY Q compatible, 2 outputs with each 16 User Bands


Upgrade to Sky Q without changing your existing quadplex wall socket. The 9725 SFU dCSS Switch converts a wideband signal to dCSS so you can connect any digital Set-Top box – such as Sky Q, Sky+, FreeSat or Freeview – without changing your in-home wall socket.


  • Designed for Pre-Wired dwellings with Wideband LNBs and Terrestrial and Radio antennas
  • 3 inputs: 2 Satellite cables (Wideband LNB) + 1 Terrestrial cable
  • 2 outputs with 16 user bands each
  • Multistandard: EN50494 – EN50607 – SKY – Legacy – Terr.
  • Supporting New Build Developers and also for Retro-Fitting
  • Makes all digital platforms available to residents
  • Upgrade to Sky Q without changing your existing quadplex wall socket
  • For indoor use and outdoor use

Specifications

9725
Inputs - 2 SAT + 1 Terr./FM/DAB
Outputs - 2 (Terr. + Legacy + SCR)
Input Frequency MHz Terr.: 5-862
SAT (wideband): 290-2340
Output Frequency MHz 5-862 + 950-2150
Input/output connector - 75 Ohm F type (Female)
dCSS/dSCR UBs  - 16 + 16
dCSS/dSCR output level  dBµV 85
Return loss dB >=8 dB (Typ 12)
Satellite Loss dB Not applicable, AGC (automatic gain control)
Terrestrial/Cable loss dB -4
Band and polarity selection - Universal LNB voltage & Tone
DiSEqC 1.0 (unidirectional)
DiSEqC 2.0 (bidirectional)
Standard EN 50494 (SCD)
Standard EN 50607 (SCD 2)
SKY UK standard
Power consumption W < 3
Max DC current consumption - < 230mA @ 13 Volt
Power supply - From STB - To LNB
Operating temperature °C -20 to +50
Dimensions indoor unit mm 65x100x30 mm
Dimensions outdoor unit  mm 120x115x50 mm
EAN - 5404041102085
