Ref. 4005 Optical Headend Transmitter 1 wavelength FULLBAND

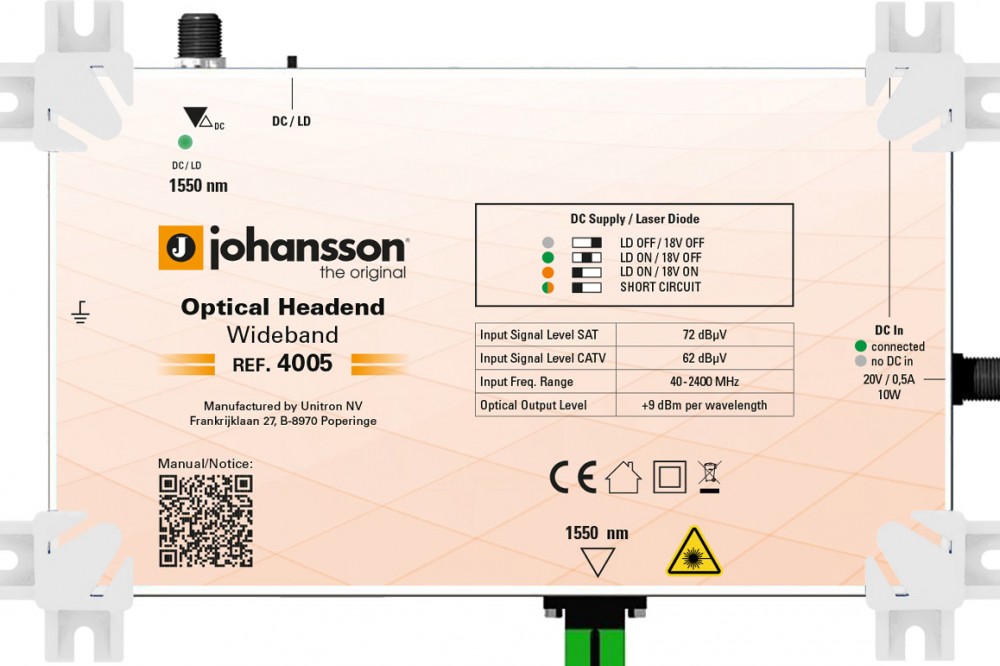

4005 Optical Headend Transmitter 1 wavelength FULLBAND
Optical Headend Transmitter 1 RF FULL BAND input and 1 optical output with 1 wavelength (1550nm)
The 4005 Optical Compact Headend converts RF to 1550nm optical wavelength
- 1 RF FULL BAND input
- frequency range: 40 - 2400 MHz
- 1 Optical output (wavelength 1550nm)
- 9 dBm output power
- Compared to ref. 4002, 4003 and 4004, the 4005 has NO built-in AGC and ASC
| REF. 4005 | ||
|---|---|---|
| RF Inputs (F-connector) | - - |
1 x RF |
| Input frequency | MHz |
40 - 2400 |
| Optical outputs (SC/APC) | - | 1 |
| Optical wavelengths | nm | 1550 |
| Optical output power | dBm | 9 (per wavelength) |
| Input signal level | dBµV |
62 (64QAM) - 67 (16QAM) - 72 (QPSK) |
| DC on RF input | - |
18V / 400mA |
| Power supply | - | Ref 2460 (Not included) |
| DC input | - | 20 V / 0.5A (F-type) |
| Power consumption | W | 10 |
| Operating temperature range | °C | -10 to +50 |
| Dimensions | mm | 221 x 141 x 50 |
| Weight | kg | 0.8 |
| EAN | - | 5404041100258 |
