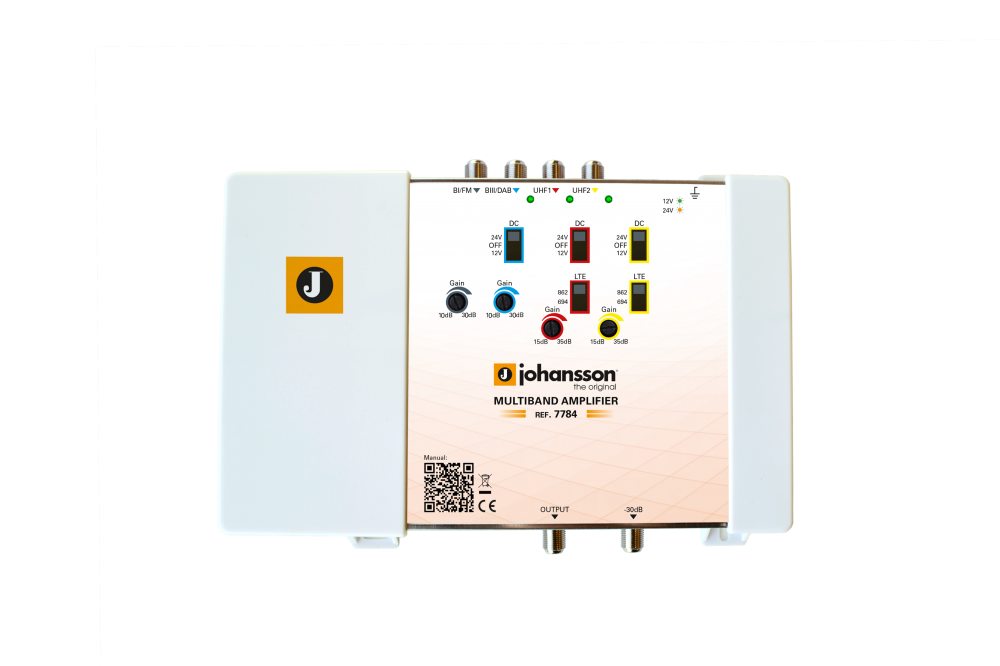

Ref. 7784 Multiband Distribution amplifier 4 inputs

7784 Multiband Distribution amplifier 4 inputs

High output power distribution amplifier (BI/FM, BIII/DAB, UHF1, UHF2) with separate gain adjustments, DC selection and LTE selection


Johansson offers a new range of high output power Multiband distribution amplifiers.

The RED compliant amplifiers are fully LTE-ready and have a high gain.
This ensures a perfect signal quality throughout the building.
The amplifiers are far more efficient than their predecessors.

  • 4 inputs: BI/FM, BIII/DAB, UHF1, UHF2
  • split-band amplifiers with interstage attenuators and dynamic range of 20 dB
  • high gain, high output power
  • high input power to ensure input overload is virtually impossible
  • VDC switchable remote power
  • compact housing
  • detachable power supply (included)
  • -30 dB test output
  • RED compliant

Specifications

7784
Inputs - BI/FM
BIII/DAB
UHF1
UHF2
Frequency range MHz BI/FM: 47 - 108
BIII/DAB: 174 - 240
UHF1: 470-694 or 862 (switchable)
UHF2: 470-694 or 862 (switchable)
Gain dB BI/FM: 10-30
BIII/DAB: 10-30
UHF1: 15-35
UHF2: 15-35
Max. input power dBµV BI/FM (-60dBc): 94
BIII/DAB (-60dBc): 92
UHF1 (-60dBc): 96
UHF2 (-60dBc): 96
Max. output power  dBµV BI/FM (-60dBc): 118
BIII/DAB (-60dBc): 119
UHF1 (-60dBc): 118
UHF2 (-60dBc): 118
Noise figure  dB BI/FM: 4.5
BIII/DAB: 4
UHF1: 5.5
UHF2: 5.5
Return loss  dB >10
Test Port  dB -30
Remote Power  V OFF - 12V - 24V
DC Mode  mA BIII/DAB: 100
UHF1: 100
UHF2: 100
RED selectivity classification  - 0 and 1
Supply voltage  VAC 100 - 240
Power consumption  W 23
Dimensions mm 217 x 165 x 59
