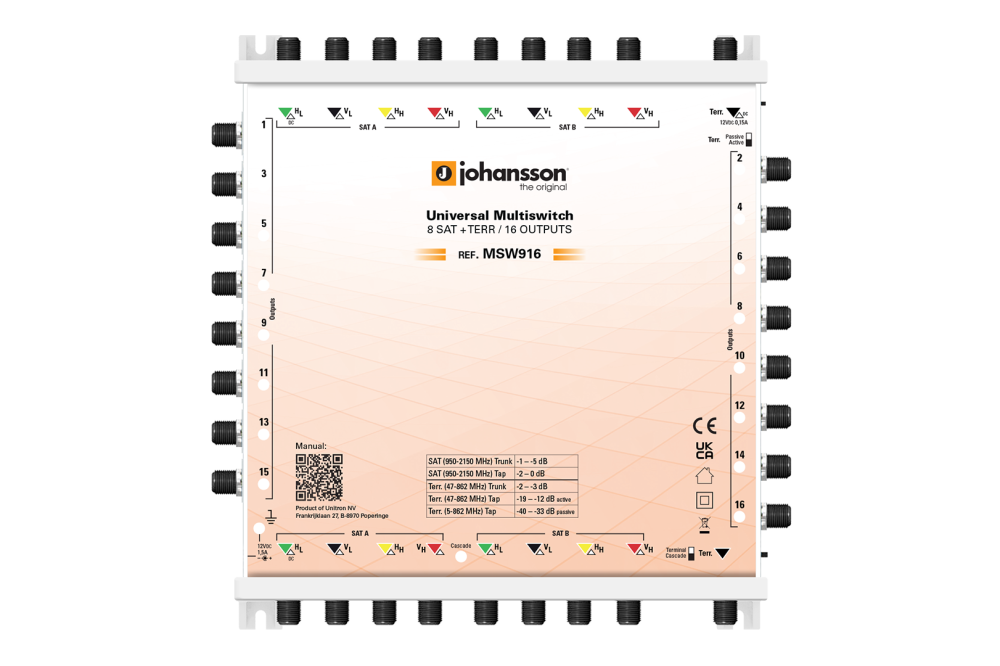

LEGACY MULTISWITCH 9 IN 16 OUT

Ref. MSW.916 LEGACY MULTISWITCH 9 IN 16 OUT

Go to products

LEGACY MULTISWITCH / 9 INPUTS 16 OUTPUTS / STANDALONE/CASCADABLE / ACTIVE/PASSIVE TERR

Excellent signal quality even at low signals, by the patented transistor switching design

Active/passive Terrestrial switch

12V 0,15A Terrestrial feeding

Terminal/cascade switch

LED indicators at taps

Compact design

A class, CE approved

DiSEqC 2.0 compatible

External SMPS power supply

MSW916
Inputs	-	8 SAT + 1 Terr
Input Frequency	MHz MHz	Terr: 47 - 862 SAT: 950 - 2150
Taps	-	16
Truk Loss	dB	SAT: -1 to -5 Terr: -2 to -3
Tap Loss	dB dB dB	SAT: -2 to 0 Terr Active: -19 to -12 Terr Passive: -40 to -33
Isolation	dB	H/V: > 30
Return Loss	db	> 10
Output Level	dBµV dBµV	SAT (IMD3, EN50083-5): 100 Terr (IMD3, EN50083-5): 92
LNB Power Supply	-	12 Vdc / 250 mA max per input
Consumption in Terr Active Mode	-	130 mA
Consumption From The Receiver	mA	40
Switching Commands	-	DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz
Dimensions LxWxH	cm	17x19x4
EAN	-
