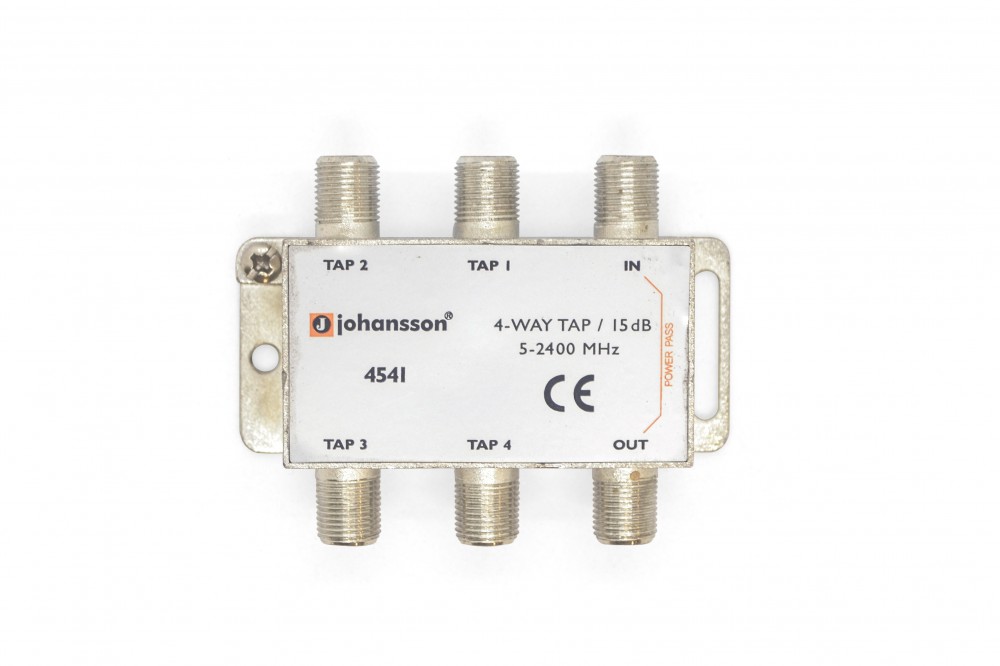

Ref. 4541 4 way tap


4541 4 way tap

4 way tap / -15 dB / 5-2400 MHz


4 Way Tap:


  • Nickel plated zinc diecast housing
  • "F" type connectors
  • Input/output DC power pass

Specifications

4541
Frequency MHz 5-2400
Way - 4
Insertion loss @ 5-862MHz dB < 3
Insertion loss @ 950-1550MHz dB < 3
Insertion loss @ 1551-2150MHz dB < 4
Insertion loss @ 2151-2400MHz dB < 4
Tap loss @ 5-862MHz dB < 15
Tap loss @ 950-1550MHz dB < 15
Tap loss @ 1551-2150MHz dB < 16
Tap loss @ 2151-2400MHz dB < 16
Isolation @ 5-1550MHz dB > 25
Isolation @ 1551-2400MHz dB > 25
Return loss in/out/tap dB 10
DC power pass (out/in) - 1
Dimensions mm 56x73x19
EAN - 5404041100746
