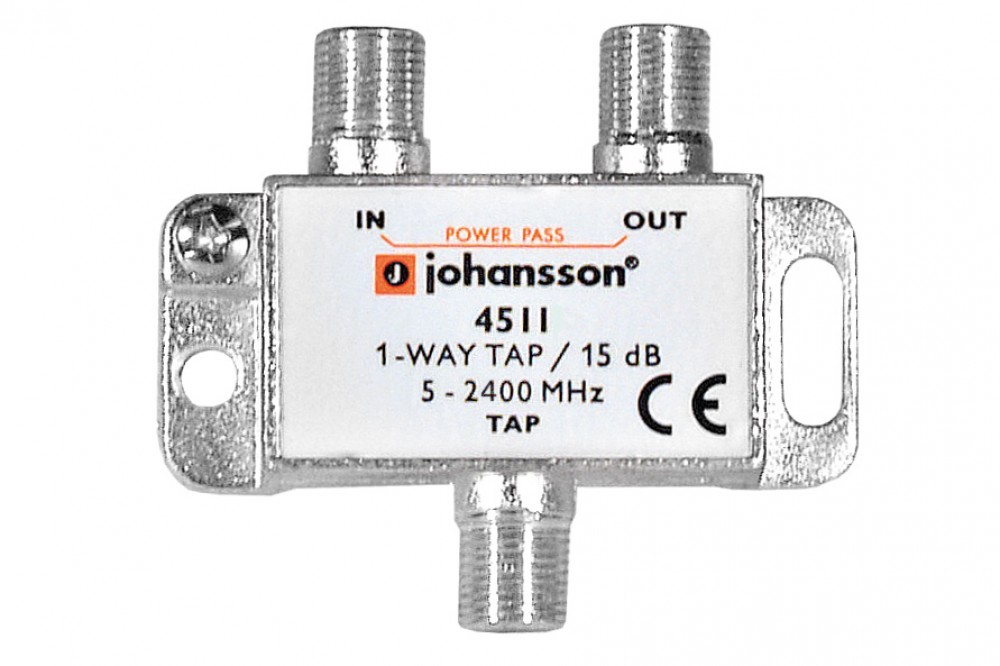

Ref. 4511 1 way tap


4511 1 way tap

1 way tap / -15 dB / 5-2400 MHz


1 Way Tap:


  • Nickel plated zinc diecast housing
  • "F" type connectors
  • Input/output DC power pass

Specifications

4511
Frequency MHz 5-2400
Insertion loss @ 5-862MHz dB < 3
Insertion loss @ 950-1550MHz dB < 3
Insertion loss @ 1551-2150MHz dB < 3
Insertion loss @ 2151-2400MHz dB < 4
Tap loss @ 5-862MHz dB < 15
Tap loss @ 950-1550MHz dB < 15
Tap loss @ 1551-2150MHz dB < 16
Tap loss @ 2151-2400MHz dB < 16
Isolation @ 5-1550MHz dB > 25
Isolation @ 1551-2400MHz dB > 25
Return loss in/out/tap dB 10
DC power pass (out/in) - 1
Dimensions mm 47x56x21
EAN - 5404041100654
