9646 Wideband to Quattro Convertor

Wideband to Quattro Convertor

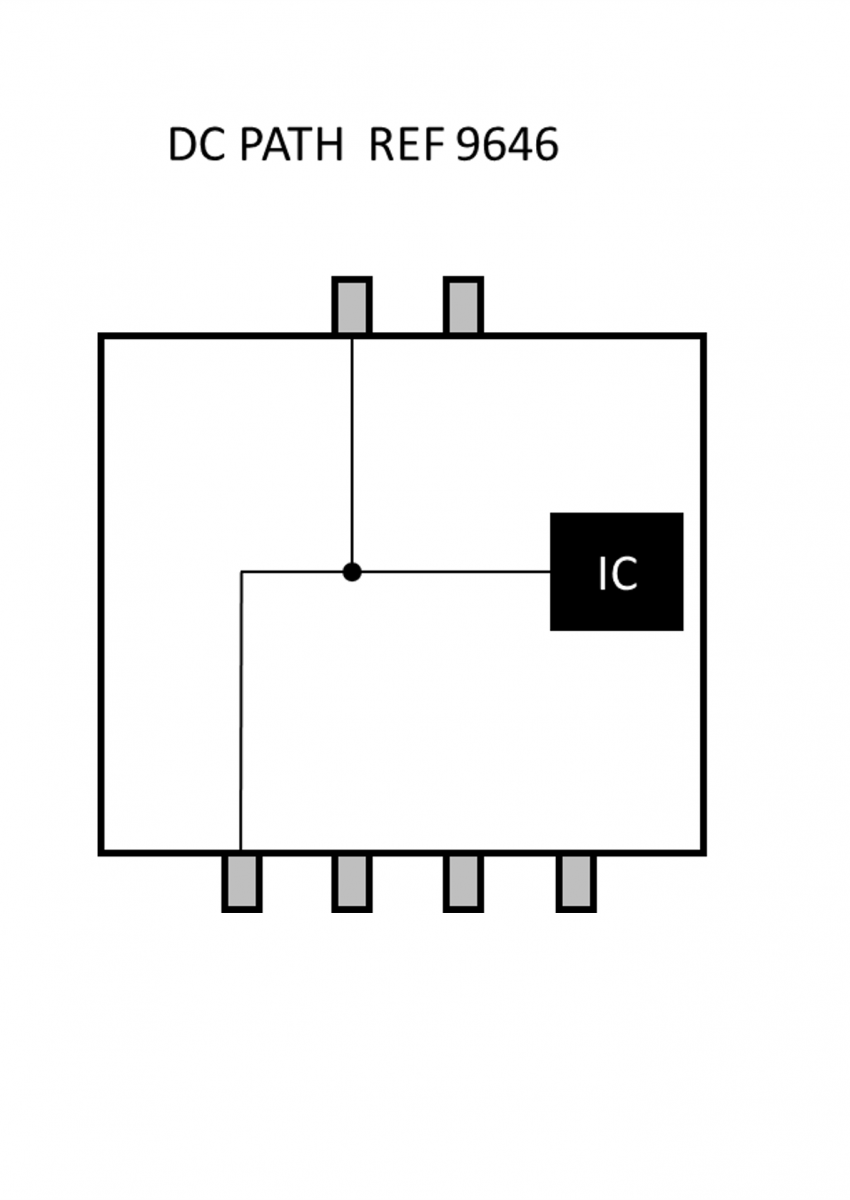

Converts a wideband LNB (V,H) into a quattro LNB (VL, HL, VH, HH). DC pass through on VL to power the wideband LNB.

Ideal for systems with a mix of new wideband Set-Top-Boxes and other Set-Top-Boxes.

Back: Ref. 9645KIT Next: Ref. 9653

Specifications

9646
Inputs - 2
Input frequencies MHz 290 - 2340
Outputs - 4
Output frequencies MHz 950 - 2150
Conversion gain dB Typical 0
Input power dBµV 54 to 84
Isolation dB 26
DC consumption mA 150 @ 20 VDC
DC input voltage VDC 10 - 20
Dimensions mm 90 x 80 x 40
EAN - 5404041101934

Documentation

Application
