Ref. 4502 Wideband 2 way splitter

Go to products

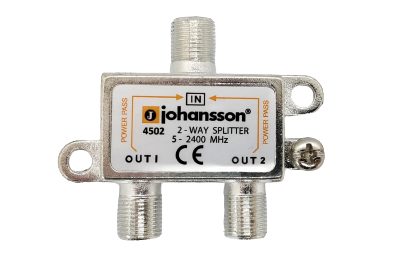

4502 Wideband 2 way splitter

Wideband 2 way splitter / 2 DC / 5-2400 MHz


Wideband Indoor Splitter - Compatible with Wideband LNBs


  • 2-way wideband splitter
  • Low insertion loss
  • Nickel plated zinc diecast housing
  • "F"- type connectors
  • DC power pass on all ports (diode protection)

Back: Ref. 4062 Next: Ref. 4503

Specifications

4502
Way - 2
Frequency MHz 5-2400
Insertion loss @ 5-862MHz dB <4
Insertion loss @ 950-1550MHz dB <5
Insertion loss @ 1551-2150MHz dB <5
Insertion loss @ 2151-2400MHz dB <6
Isolation @ 5-1550MHz dB >25
Isolation @ 1551-2400MHz dB >20
Return loss in/out  dB 10
DC power pass (out/in)  - 2
Dimensions (mm)  mm 47x56x17
EAN - 5404041100593

Documentation
