Ref. 7724L2 VHF-UHF indoor amplifier 5G

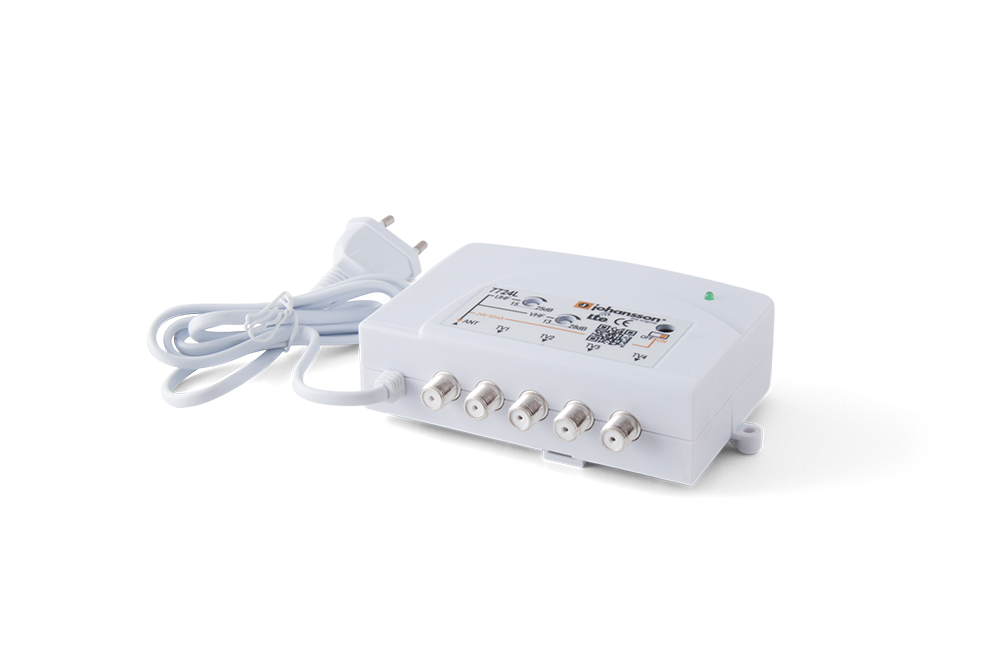

7724L2 VHF-UHF indoor amplifier 5G
1 input (40-320 + 470-694 MHz) / 4 outputs / gain VHF: 13-28 dB / gain UHF: 15-25 dB
- 1 input: 40-320 MHz + 470-694 MHz
- 4 outputs
- Adjustable VHF gain: 13-28 dB
- Adjustable UHF gain: 15-25 dB
- 24VDC switchable remote power
- Power LED indicator
- Wall and DIN rail mountable
| 7724L2 | ||
|---|---|---|
| Frequency range | MHz | 40-320 + 470-694 |
| Adjustable gain | dB | VHF: 13-28 UHF: 15-25 |
| Noise figure | dB | 3.0 typ. |
| Max. output level | dBµV | 102 |
| Return loss (input/output) | dB | 10 |
| Isolation between outputs | dB | 15 |
| Remote power | - | 24V / 55mA |
| Input voltage | - | 100-230V / 50-60Hz / 4,8W |
| Mounting | - | Wall or DIN rail mounting |
| Dimensions | mm | 137 x 92 x 42 |
| EAN | - | 5404041101613 |
