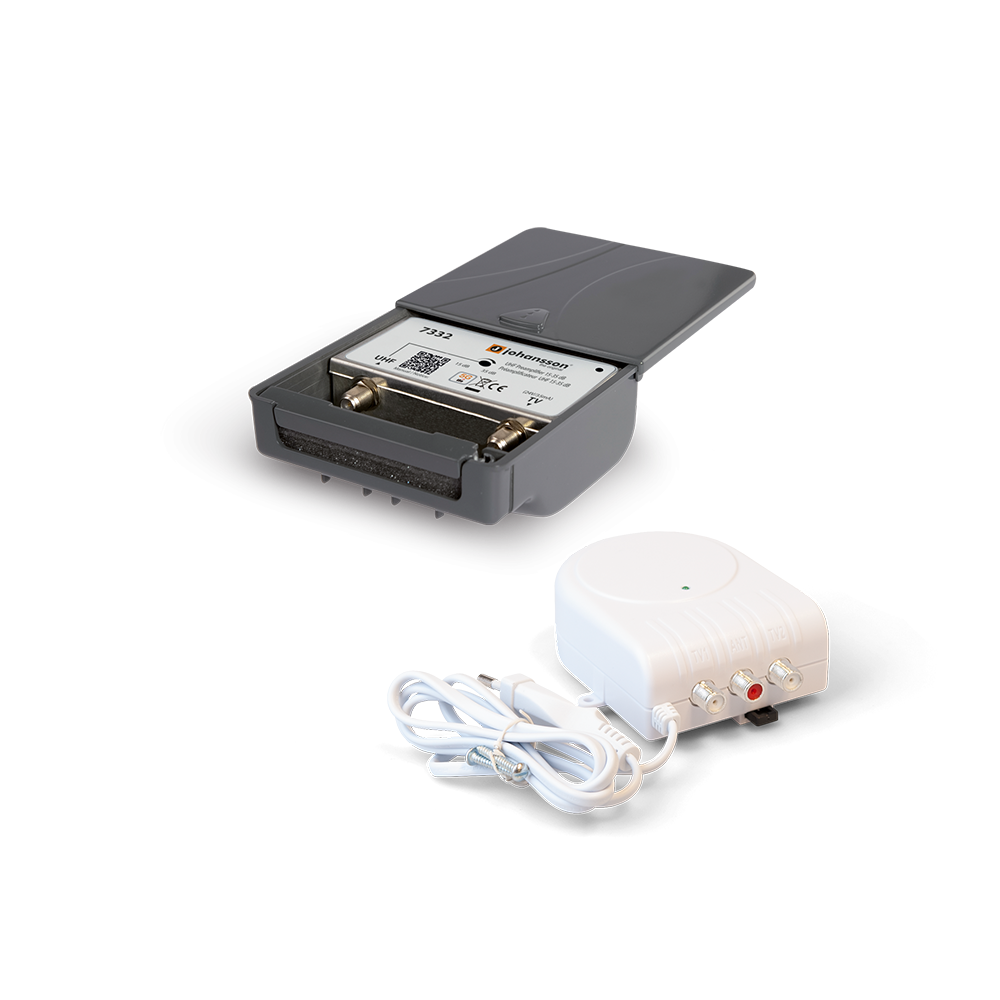

Ref. KIT7332 UHF Preamplifier (5G) (High performance) + Power Supply


KIT7332 UHF Preamplifier (5G) (High performance) + Power Supply

UHF Preamplifier (5G): 34dB 12-24V


7332 UHF Preamplifier (5G):


  • 1 input/1 output
  • 5G rejection
  • Low-noise
  • 19-34 dB adjustable gain
  • Power indication LED
  • 12-24 VDC operating voltage
  • High performance

Power Supply:

  • High-efficiency power supply
  • 24V stabilized
  • Short-circuit protection
  • Power LED indicator
  • Wall or DIN-rail mountable

Specifications

7332
Frequency range MHz 470-694
Gain dB 19 - 34
Noise figure dB 2
Input level  dBµV 90
Output level  dBµV 110
Power supply  VDC 12 - 24
Consumption mA 110@12V - 60@24V
Dimensions mm 120 x 115 x 50
RED selectivity classification  - 0, 1, 2, 3 and 4
EAN - 5404041102740
