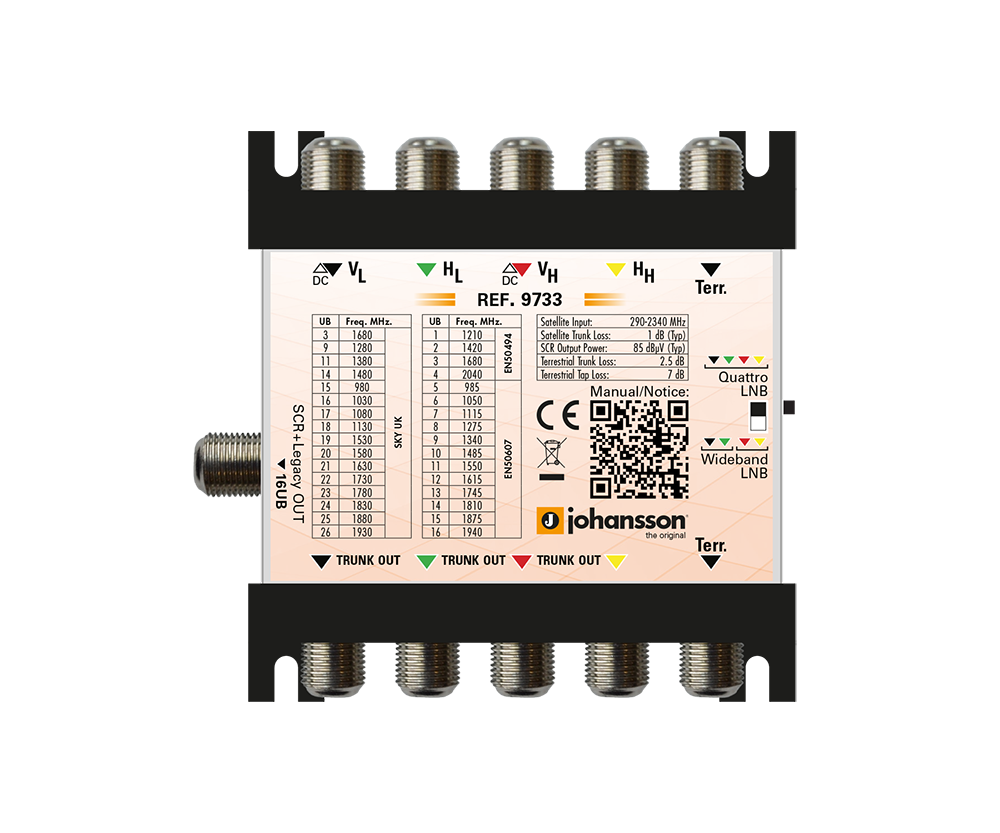

Ref. 9733 DSCR Multiswitch 1 output

9733 DSCR Multiswitch 1 output

4 satellite inputs, 4 satellite trunk outputs, passive terrestrial diplexer, 1 output with 16 User Bands


  • satellite inputs for 1 universal LNB or 2 wideband LNBs (switchable)
  • 1 dSCR output
  • up to 16 UBs per SCR output
  • improved satellite trunk loss: Typically 1 dB
  • auto detection for SCR and Legacy Mode
  • possibility to convert wideband inputs into Legacy outputs
  • support all SCR Standards
  • compatible with all Legacy STBs
  • passive terrestrial/cable diplexer
  • low power Sleep Mode
  • ultra compact housing
  • trunk output for cascading multiple products
  • available for different operator user bands: ​​Sky & Cyfrowy Polsat

Specifications

9733
Trunk inputs - 4 + 1
Trunk outputs - 4 + 1
Trunk Frequency MHz 5-862 / 290-2340
STB Output Frequency MHz 5-862 / 950-2150
Trunk loss dB Typ. 1
dCSS/dSCR outputs - 1
dCSS/dSCR output connector - 75 Ohm F type (Female)
dCSS/dSCR UBs - 16
dCSS/dSCR output level dBµV 85
Return loss dB >=8 dB (Typ 12)
Tap loss - Not applicable, AGC (automatic gain control)
Terrestrial/Cable loss dB -7
Band and polarity selection - Universal LNB voltage & Tone
DiSEqC 1.0 (unidirectional)
DiSEqC 2.0 (bidirectional)
Standard EN 50494 (SCD)
Standard EN 50607 (SCD 2)
SKY UK standard
Max DC current consumption - < 320mA @ 13 Volt
Power supply - From STB, power inserter or trunk (VL&VH)
Power (2460+9669 available separately) - 3A max, 20V
Dimensions mm 92x90x40 mm
