Ref. 9658 AGC & ASC Satellite & Cable Amplifier


9658 AGC & ASC Satellite & Cable Amplifier

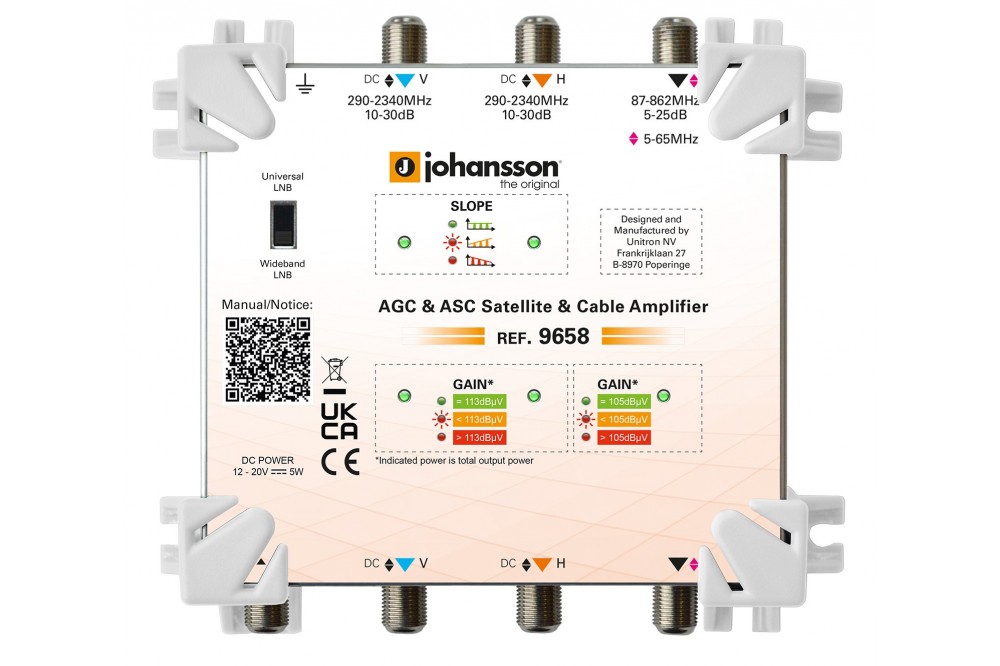

AGC & ASC Satellite & Cable Amplifier

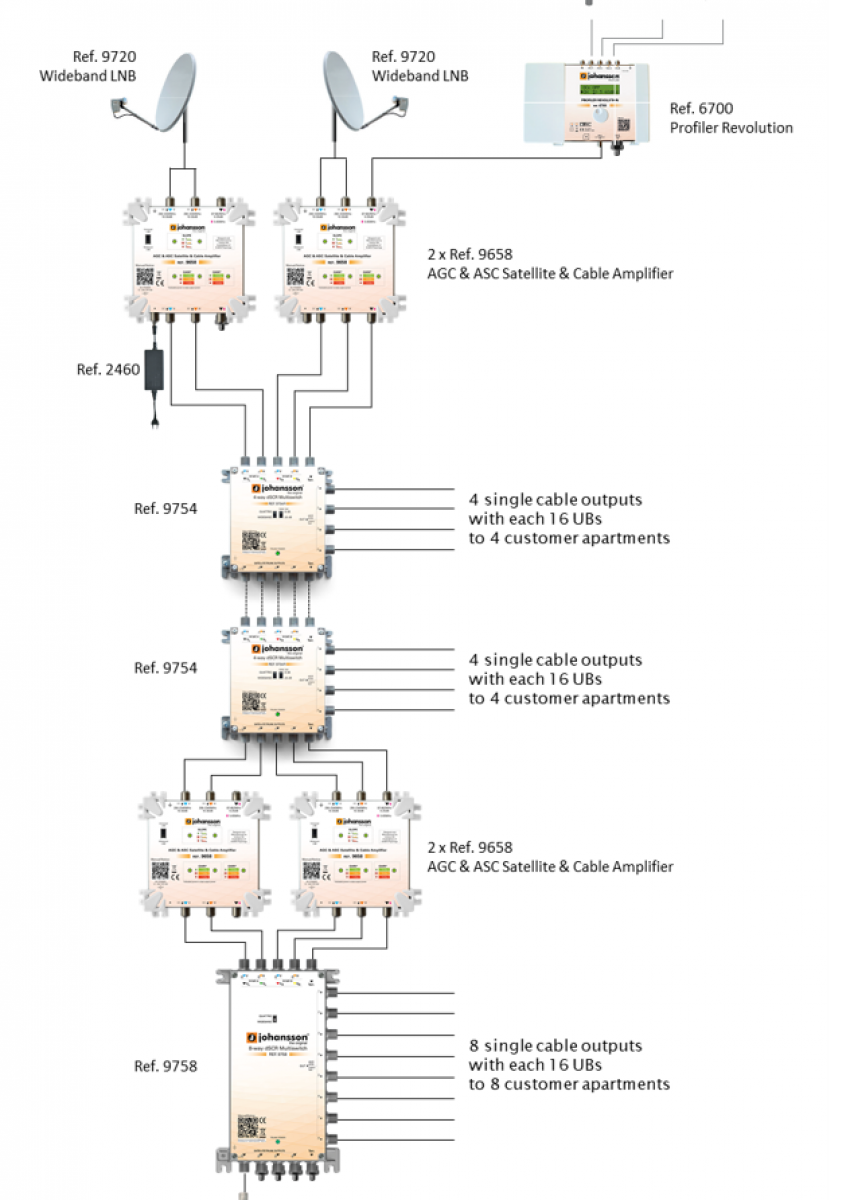

An ideal launch amplifier for Multiswitch systems with a Cable/Terrestrial path.

The AGC & ASC Satellite & Cable Amplifier optimizes your Wideband V/H (290-2400 MHz) and Cable (87-862MHz) signal in real-time.
To do so, it uses Automatic Gain Control (AGC) and Automatic Slope Control (ASC).
  • Automatic Gain Control on all lines (V/H/Cable) and Automatic Slope Control on both satellite lines (V/H)
  • DC input for powering amplifier and LNB (Optional power supply (ref. 2460))
  • Selectable between Wideband LNB (290 - 2400 MHz) and Universal LNB (950 - 2150 MHz)

Specifications

9658
Inputs - SAT V SAT H CABLE
Outputs - SAT V SAT H CABLE
Frequency range MHz 290 - 2400 (Wideband)
950 - 2150 (Universal)
87 - 862
Gain dB 10 - 30 5 - 25
Noise figure dB 5
Gain adjustment dB 20 (Automatic Gain Control)
Slope adjustment dB 15 (Automatic Slope Control) -
Output level dBµV 113 105
Cable Return Path MHz - - 5 - 65
Consumption - 400 mA max.
from 12-20 VDC (F-connector)
external power supply or input / output
Power consumption W 5
Dimensions mm 129 x 140 x 51
Weight kg 0.350
EAN - 5404041101996

Documentation

Application
