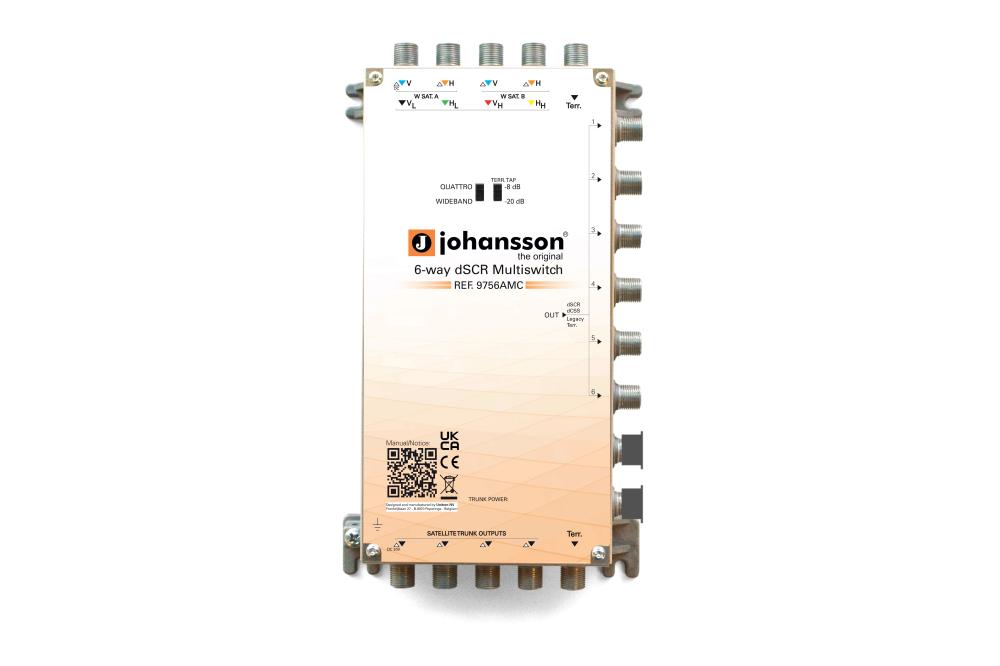

Ref. 9756A Digital SCR Multiswitch 6 outputs
9756A Digital SCR Multiswitch 6 outputs
4 satellite + 1 terrestrial inputs, 6 dSCR outputs, Active Terrestrial Amplifier
THE NEXT GENERATION DSCR MULTISWITCH FROM YOUR MARKET LEADER
This state-of-the-art Multiswitch in a compact die-cast housing is optimized for installation in narrow spaces and will make your installation more successful.
- Multi-standard: Wideband, dSCR, dCSS, Legacy, Terr.
- Optimized performance and power consumption
- Compact die-cast housing for easy installation
- Active Terrestrial Amplifier
| 9756A | ||
|---|---|---|
| Trunk inputs / outputs | - | SAT: 4 | TERR: 1 |
| Outputs | - | 6 (dSCR/dCSS/Legacy/TERR) |
| Frequency | MHz | SAT: 290 - 2340 | TERR: 88 - 862 |
| Min. input level SAT | dBµV | Universal LNB: 62 | Wideband LNB: 67 |
| Max. input level TERR | dBµV | Amplified: 109 | Bypass: 121 |
| Trunk return loss | dB | > 10 |
| Trunk insertion Loss | dB | SAT: 4 | TERR: 3 |
| SAT positions | - | Universal LNB: 1 | Wideband LNB: 2 |
| dSCR channel output power | dBµV | 88 (AGC controlled) |
| Output return loss | dB | > 10 |
| TERR tap loss | dB | Bypass: 20 | Amplified: 8 |
| SCR channels (16 users/output) | MHz | Between 950 and 2150 |
| Supported standards | - | EN 50494 (SCD)
EN 50607 (SCD 2) BSKYB Legacy |
| Trunk termination DC block required | Ohm | 75 (SAT & TERR) |
| DC power via SAT trunks | V | 20 |
| Consumption | W | 20 |
| Operating temperature | °C | -20 to +50 (indoor housing) |
| Dimensions | mm | 204 x 117 x 39 |
| Weight | kg | 0.530 |
| EAN | - | 9756A: 9756APL: |
