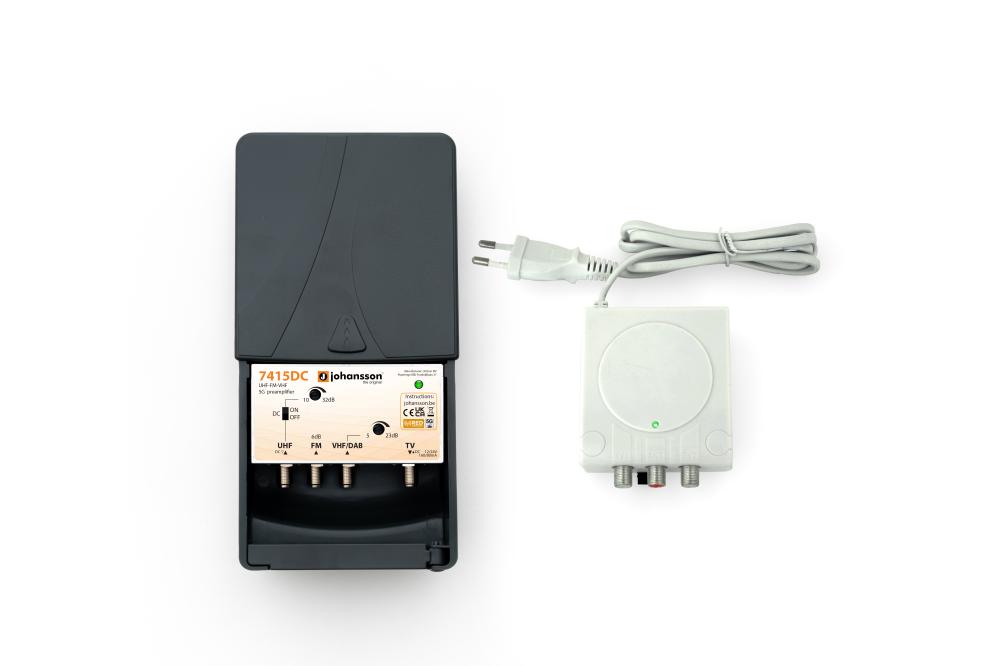

Ref. KIT7415DC 3 inputs DTT preamplifier-combiner 5G + Power Supply
KIT7415DC 3 inputs DTT preamplifier-combiner 5G + Power Supply
FM / BIII-DAB / UHF INPUTS 6DB / 5-23DB / 10-32DB / 12-24V SWITCH MODE POWER SUPPLY
7415L2 Preamplifier :
- FM input / BIII or DAB input / UHF input
- 1 wideband output
- 6dB gain on FM
- 10-32dB adjustable gain on UHF
- 5-23dB adjustable gain on VHF/DAB
- 5G rejection
- Low-noise
- Switchable DC power pass on UHF
- 12-24 VDC operating voltage
- Wall or mast mountable
| 7415DC | ||||
|---|---|---|---|---|
| Input | - | FM | BIII/DAB | UHF Ch. 21 - 48) |
| Frequency range | MHz | 88 - 108 | 170 - 240 | 470 - 694 |
| Gain | dB | 6 | 5 - 23 | 10 - 32 |
| Noise Figure | dB | 12 | 3.0 | 1.5 |
| Max. input level | dBµV | 104 | 96 | 82 |
| Max.output level | dBµV | 110 | 112 | 110 |
| DC Poer Pass | - | - | - | 500 mA max. |
| Power supply | VDC | 12-24 | ||
| Consumption | mA | 80 (24V) - 160 (12V) | ||
| Dimensions | mm | 122 x 98 x 56 | ||
