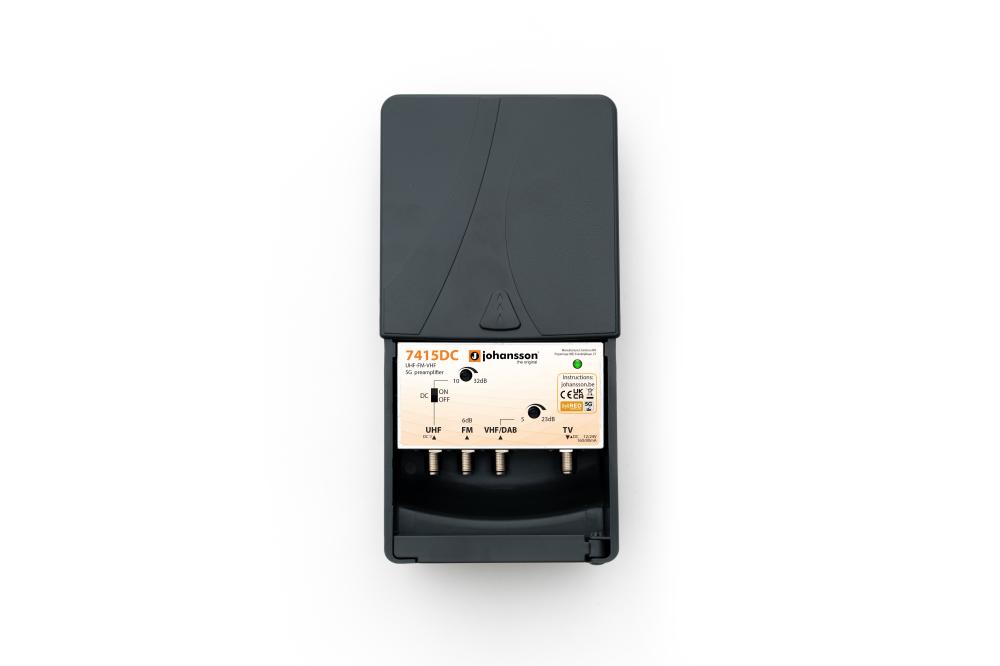

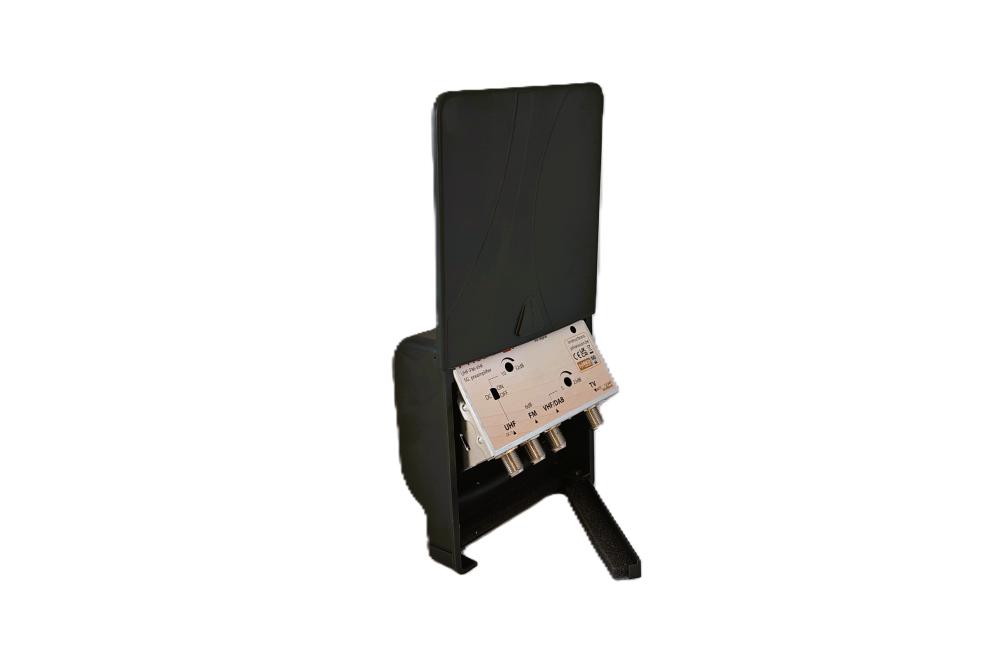

Ref. 7415DC 3 inputs DTT preamplifier-combiner 5G


7415DC 3 inputs DTT preamplifier-combiner 5G

FM / VHF/DAB / UHF inputs 6dB / 5-23dB / 10-32 dB 24V


7415L2 Preamplifier :


  • FM input / BIII or DAB input / UHF input
  • 1 wideband output
  • 6dB gain on FM
  • 10-32dB adjustable gain on UHF
  • 5-23dB adjustable gain on VHF/DAB
  • 5G rejection
  • Low-noise
  • Switchable DC power pass on UHF
  • 12-24 VDC operating voltage
  • Wall or mast mountable

Specifications

7415DC
Input  FM  BIII/DAB   UHF Ch. 21 - 48)
Frequency range  MHz 88 - 108 170 - 240  470 - 694
Gain dB 6 5 - 23 10 - 32
Noise Figure  dB 12 3.0 1.5
Max. input level  dBµV 104 96 82
Max.output level  dBµV 110 112 110
DC Poer Pass - - - 500 mA max.
Power supply  VDC 12-24
Consumption mA 80 (24V) - 160 (12V)
Dimensions mm 122 x 98 x 56
